Industry Standard Small Signal Switching Diodes / Schottky Diodes / Bipolar Transistors in SOT / SOD Packages

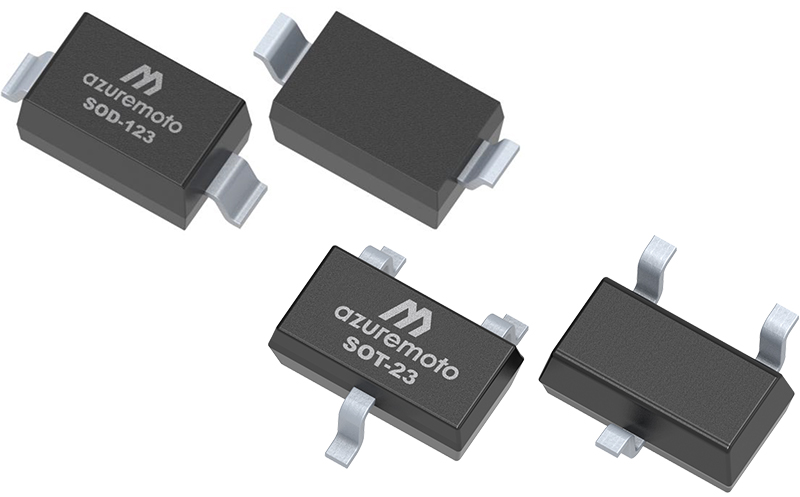

Azuremoto announces the introduction of the industry standard small signal Switching Diodes, Schottky Diodes and Bipolar Transistors packaged in the surface mount “SOT23”,“SOD123” and “SOD323”
package.
The industrial standard small signal portfolio is widely used in computer, communication and consumer electronics applications for general purpose.
Border Color Title
-
Direct Replacement
Offers a direct replacement for the industry standard providing better value and improved availability.
-
Small Form Factor
The small surface mount package by industry standard SOT23, SOD123, SOD323 enables compact schemes as well as improves the product reliability in the long run.
-
Moisture Sensitivity Level 1
-
Lead-Free / RoHs-Compliant
-
Halogen Free “Green” Device
Applications
-
Notebooks and Desktop Computers, Peripherals
-
Handheld and Gaming Devices
-
LCD / LED Displays
-
Motor Drive: BLDC, PMSM, etc.
-
Power Supplies
-
Household Appliances
Product Portfolio
Switching Diodes
| Azuremoto Part Number | Power Dissipation (mW) | Reverse Working Maximum Voltage (V) | Maximum Average Forward Rectified Current (mA) | Forward Voltage (V) @TA=25 ℃ | Reverse Current (μA) @TA=25 ℃ | Reverse Recover y Time (ns) | Peak Forward Surge Current @t=8.3m s (A) | Package |
|---|---|---|---|---|---|---|---|---|
| 1N4148W | 400 | 75 | 150 | 1 | 1 | 4 | 2 | SOD123 |
| BAV21W | 250 | 250 | 200 | 1 | 0.1 | 50 | 2.5 | SOD123 |
| BAV21WS | 200 | 200 | 200 | 1 | 0.1 | 50 | 2.5 | SOD123 |
| BAV70 | 350 | 75 | 150 | 1 | 2.5 | 4 | 2 | SOT123 |
| BAV99 | 350 | 75 | 300 | 1 | 2.5 | 4 | 2 | SOT123 |
Schottky Diodes
| Azuremoto Part Number | Peak Repetitive Reverse Voltage (V) | Forward Continuous Current (mA) | Forward Voltage (V) @TA=25℃ | Reverse Current (μA) @TA=25 ℃ | Peak Forward Surge Current @t=8.3m s (A) | Package |
|---|---|---|---|---|---|---|
| B5819W | 40 | 1000 | 0.6 | 1000 | 10 | SOD123 |
| B5819WS | 40 | 1000 | 0.6 | 1000 | 10 | SOD323 |
Bipolar Transistors
| Azuremoto Part Number | Polarity | CollectorEmitter Voltage (V) | Collector Current (A) | Power Dissipation (W) | DC Current Gain (Min) | hFE (@IC) (A) | CollectorEmitter Saturation Voltage Max (mV) | VCE(SAT) (@IC/IB) (A/mA) | Package |
|---|---|---|---|---|---|---|---|---|---|
| MMBT3904 | NPN | 40 | 0.20 | 0.30 | 100 | 0.01 | 200 | 0.01/1 | SOT23 |
| MMBT3906 | PNP | 40 | 0.20 | 0.30 | 100 | 0.01 | 250 | 0.01/1 | SOT23 |
Cross Reference
| Part Number | Package | Vishay | Nexperia | ROHM | Diodes | Panjit | TSC | MCC | LRC |
|---|---|---|---|---|---|---|---|---|---|
| 1N4148W | SOD123 | 1N4148W | BAS16GW | 1N4148W-7-F | 1N4148W | 1N4148W-G | 1N4148W-TP | L1N4148WT1G | |
| BAV21W | SOD123 | BAV21W | BAS21GW | BAV21W-7-F | BAV21W | BAV21W-G | BAV21W-TP | LBAV21T1G | |
| BAV21WS | SOD323 | BAV21WS | BAS21GW | BAS21VMFHTE-17 | BAV21WS-7-F | BAV21WS | BAV21WS-G | BAV21WS-TP | LBAS21HT1G |
| B5819W | SOD123 | SL04-E3-18 | PMEG4010EGW | RBS1MM40ATR | 1N5819HW-7-F | SS1040L | SM5819PL-TP | LMBR140T1G | |
| B5819W | SOD323 | PMEG4010CEA | RBR1VWM40ATR | B140WS-7 | B5819WS-TP | LMBR140HT1G | |||
| BAV99 | SOT23 | BAV99 | BAV99 | BAV99 | BAV99-7-F | BAV99 | BAV99 | BAV99-TP | LBAV99LT1G |
| BAV70 | SOT23 | BAV70 | BAV70 | BAV70 | BAV70-7-F | BAV70 | BAV70 | BAV70-TP | LBAV70LT1G |
| MMBT3904 | SOT23 | PMBT3904 | MMBT3904-7-F | MMBT3904 | MMBT3904 | MMBT3904-TP | LMBT3904LT1G | ||
| MMBT3906 | SOT23 | PMBT3906 | MMBT3906-7-F | MMBT3906 | MMBT3906 | MMBT3906-TP | LMBT3906LT1G |
